Automatic Induction Pipe Heater for Large-Diameter Pipeline Coating

The Induction Pipe Heater is an advanced thermal solution designed for efficient, uniform, and safe heating of metal pipes across industrial, commercial, and residential applications. Leveraging state-of-the-art electromagnetic induction technology, it eliminates the limitations of traditional heating methods (such as open-flame, resistance, or steam heating) by transferring heat directly to the pipe’s inner and outer surfaces—ensuring rapid temperature rise, minimal energy loss, and consistent performance even in harsh operating environments.

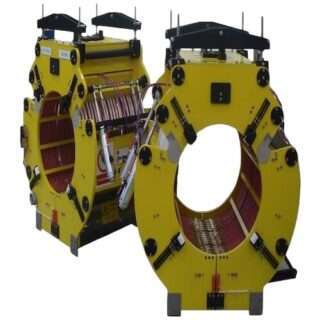

Induction Pipe Heater

Product Features


  • Environmentally friendly and noise free
  • IGBT inverter
  • High efficiency
  • High constant power factor
  • Low residual magnetism
  • Overall controllable heating temperature
  • Pipe end recognition automatic heating

Product Features


  • Power supply efficiency η ≥ 96%
  • Constant power factor Cos π≥ 0.95
  • Maximum residual magnetism <20Gs
  • Supply voltage: 380V, 50Hz, three-phase five wire system
  • Power range: 50~5000KW
  • Output stability: ± 10% input fluctuation, ± 1% output fluctuation
  • Cooling method: Water cooling system or air cooling system

Typical Applications

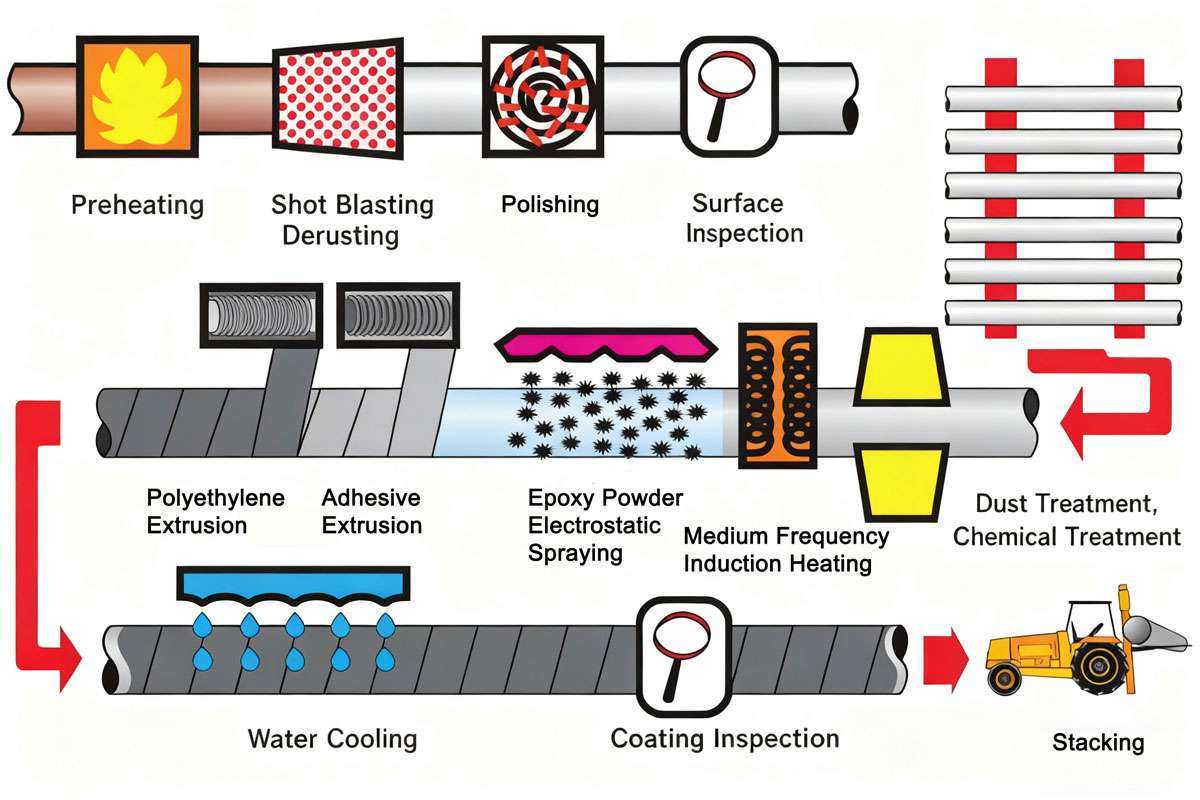

  • Anti corrosion heating, preheating, and post heating of steel pipes
  • Coating, heating, peeling and removal of anti-corrosion layer inside and outside the steel pipe
  • For typical specification steel pipes: φ 1219 × 18.4mm
  • Processing speed 1m/min

Get in touch right now for solutions meeting your specific needs!
